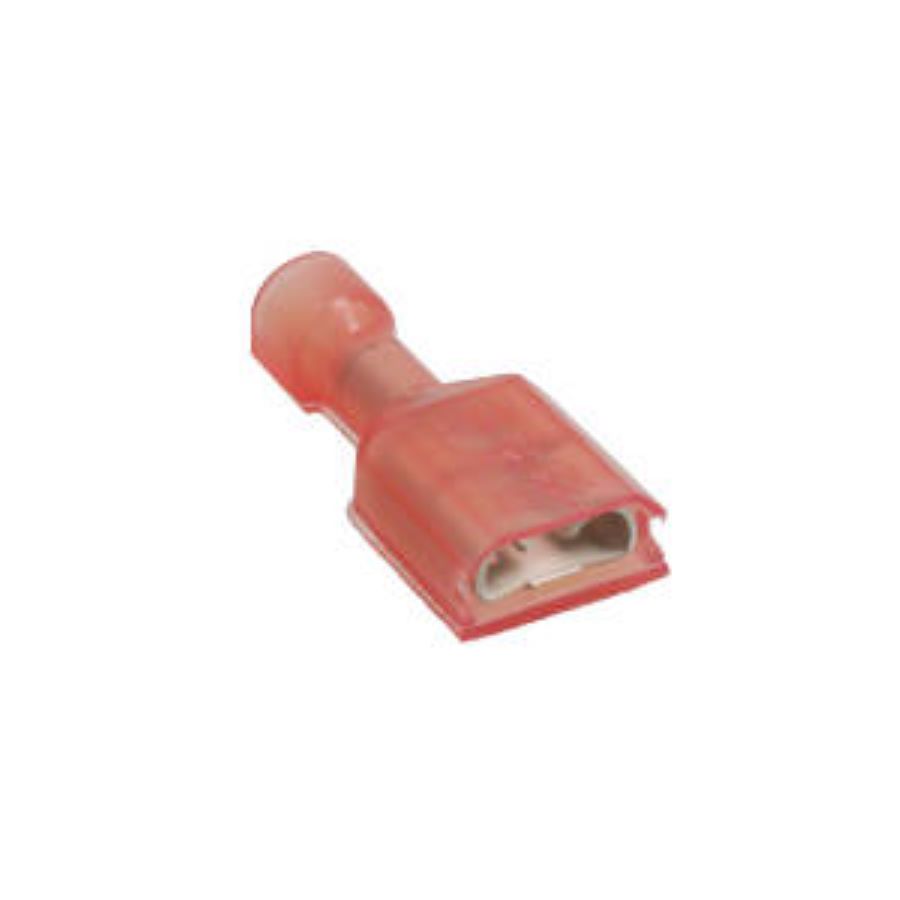

2-520183-2
Manufacturer:
TE Connectivity
Mfr.Part #:
2-520183-2
Datasheet:
Description:
Terminals Wire 22 AWG Female
| Parameter | Value |
|---|---|
| Length | 21.75 mm |
| Termination | Receptacle |
| Material | Brass |
| Packaging | Reel |
| Depth | 10.38 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Type | Receptacle |
| Flammability Rating | UL94 V-2 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Red |
| Gender | Female |
| ELV | Compliant |
| Body Material | Brass |
| Tab Width | 6.35 mm |
| Wire/Cable Diameter | 3.43 mm |
| Terminal Material | Brass |
| Wire/Cable Gauge | 22 AWG |
| Insulation | Insulated |
| Insulation Material | Nylon |
| Wire/Cable Type | Discrete |
| Wire Gauge (Max) | 18 AWG |
| Wire Gauge (Min) | 22 AWG |
| Inside Diameter | 5.08 mm |
| Plating | Tin |
| Termination Style | Crimp |
| Insulation Diameter | 3.429 mm |
| Body Plating | Tin |
| Insulated Wire Support | Yes |
| Mating Tab Width | 6.35 mm |
| Tab Length | |
| Tab Thickness | 812.8 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Stud Size | 6.35 mm x 0.81 mm |
Stock: 93812
Distributors
pcbx
pcbxUnit Price$0.54696
Ext.Price$0.54696
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.54696 | $0.54696 |
| 10 | $0.27348 | $2.73480 |
| 50 | $0.21037 | $10.51850 |
| 100 | $0.16182 | $16.18200 |
| 500 | $0.12448 | $62.24000 |
| 1000 | $0.09575 | $95.75000 |
| 3000 | $0.08895 | $266.85000 |
| 5000 | $0.08263 | $413.15000 |
| 10000 | $0.07676 | $767.60000 |
| 30000 | $0.07130 | $2139.00000 |
